Compiler Pipeline

let lexbuf outchan l =
  ...... .......
    (..........
       (......
          (.........
             (.........
                (.... !.....
                   (Alpha.f
                      (KNormal.f
                         (........
                            (.......... ........... .)))))))))

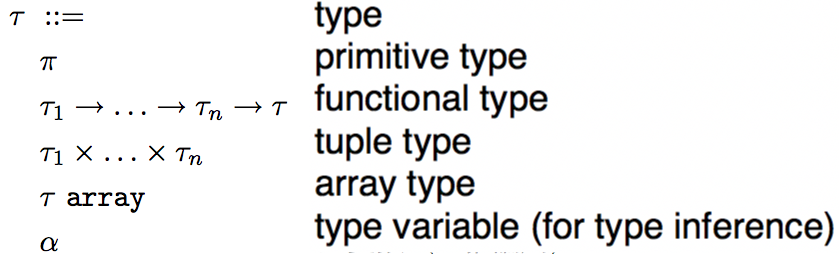

MinCaml Types

MinCaml Types as 1st-order terms

$$\begin{align} \tau & ::= \\ | & \, \text {bool | int | float} \\ | & \, \mathrm {FunctionalType}(\tau_1, \ldots, \tau_n, \tau) \\ | & \, \mathrm {TupleType}(\tau_1, \ldots, \tau_n) \\ | & \, \mathrm {ArrayType}(\tau) \\ | & \, \alpha \end{align}$$

Typing Rules for let

Assumptions

1. The type of $e_1$ is $\tau_1$

2. Under a typing environment, where the type of $x$ is $\tau_1$, the type of $e_2$ is $\tau_2$.

Conclusion

The type of $\texttt {let } x = e_1 \texttt { in } e_2$ is $\tau_2$.

Semtanics of let

The let form binds a name locally. It introduces a varible $x$ whose value is the evaluation results of $e_1$. The scope of $x$ is $e_2$ ($x$ is visible inside $e_2$).

Typing let x = 1 in x * 2

1. $\Gamma, x:\text {int} \vdash x:\text {int}$ because $\Gamma, x: \text {int}(x) = \text {int}$.

2. $\Gamma, x:\text {int} \vdash 2: \text {int}$ because 2 is an integer constant.

3. $\Gamma, x:\text {int} \vdash \texttt {x * 2}: \text {int}$ because $\texttt *: \text {int} \times \text {int} \rightarrow \text {int}$.

4. $\Gamma \vdash 1:\text {int}$ because 1 is an integer constant.

5. $\Gamma \vdash \texttt {let x = 1 in x * 2}: \text {int}$, from the last two statements and the typing rule for let.

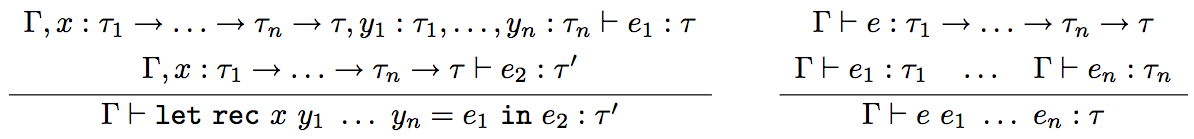

Typing Rules for let rec

Assumptions

1. Under a typing environment where $x$ is a function whose type is $\tau_1 \rightarrow \ldots \tau_n \rightarrow \tau$ and the types of $y_1, \ldots, y_n$ are $\tau_1, \ldots, \tau_n$, respectively, the type of $e_1$ is $\tau$. (When the types of virtual and real arguments match the function’s result type and body’s type should be the same.)

2. Under a typing environment where $x$ is a function whose type is $\tau_1 \rightarrow \ldots \tau_n \rightarrow \tau$, the type of $e_2$ is $\tau'$.

Conclusion

The type of $\texttt {let rec } x\ y_1 \ldots y_n = e_1 \texttt { in } e_2$ is $\tau'$.

Typing Rule for Function Application

Assumptions

1. A function $e$ takes $n$ arguments and their types are $\tau_1, \ldots \tau_n$.

2. The types of $e_1, \ldots e_n$ are $\tau_1, \ldots, \tau_n$, respectively.

These two assumption demand that the types of the formal argument and the actual arguments match.

Conclusion

The result type of a function application $e\ e_1 \ldots e_n$ is $\tau$.

Typing.deref_...

A series of function that replaces occurrences of type variable by its contents

Typing.deref_typ

Dereferencing of type variables for Type.t. The essencial code is:

let rec deref_typ = function
  ...

  | Type.Var({ contents = Some(t) } as r) ->
  let t' = deref_typ t in
  r := Some(t');
  t'

  ...

Other code recursively applies deref_* to the subcomponents.

occur r t

Checks if a type varible r occurs in a type expression t.

  | Type.Var(r2) when r1 == r2        -> true
  | Type.Var({ contents = None })     -> false
  | Type.Var({ contents = Some(t2) }) -> occur r1 t2

unify t1 t2

• unify t1 t2 attempts unification on type variables to t1 and t2. Instead of computing substitution, type variables are replaced by substitution. This is one of rare cases of using side effects throughout implementation of the MinCaml compiler.

  | Type.Var({ contents = None } as r1), _ -> (* t1 is an undefined type variable *)
    if occur r1 t2 then raise (Unify(t1, t2));
    r1 := Some(t2)
  | _, Type.Var({ contents = None } as r2) -> (* t2 is an undefined type variable *)
    if occur r2 t1 then raise (Unify(t1, t2));
    r2 := Some(t1)

• The structure of the unify function reflects the typing structure, namely Type.t.

• If it fails to unify t1 and t2, it raises an exception: raise (Unify(t1, t2)).

g env e

g env e examine the structure of e, identifies the typing rule related with that structure, then attempts to unify the assumptions and conclusions of the typing rule with the corresponding structure of e’s type.
